MLG-P4

M6 - 4

$3.90

MLG-P4

$3.90

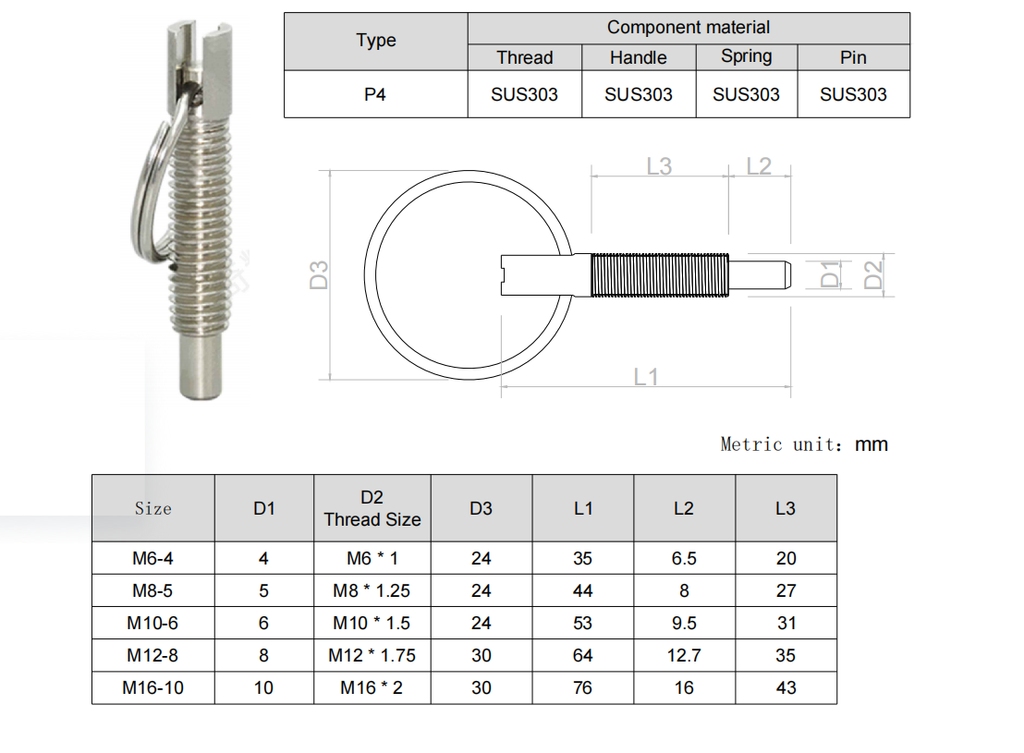

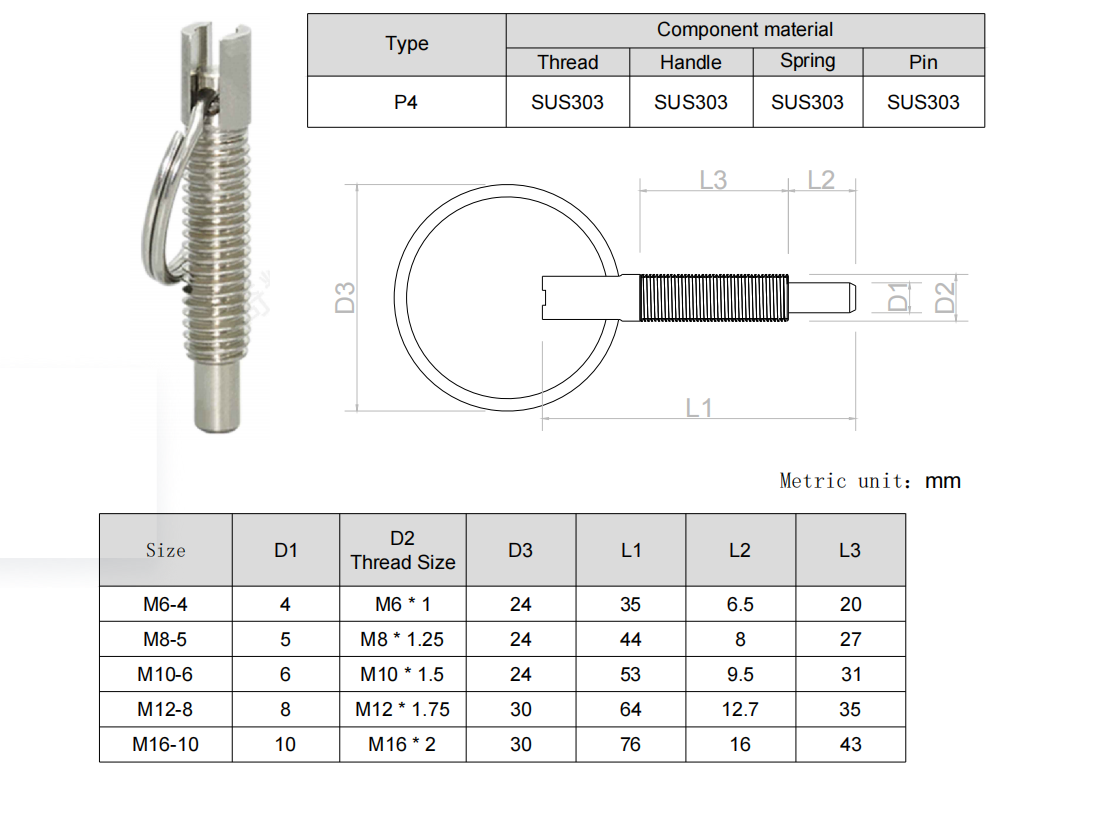

Thread Size - Pin Diameter M6 - 4 M8 - 5 M10 -6 M12 - 8 M16 - 10

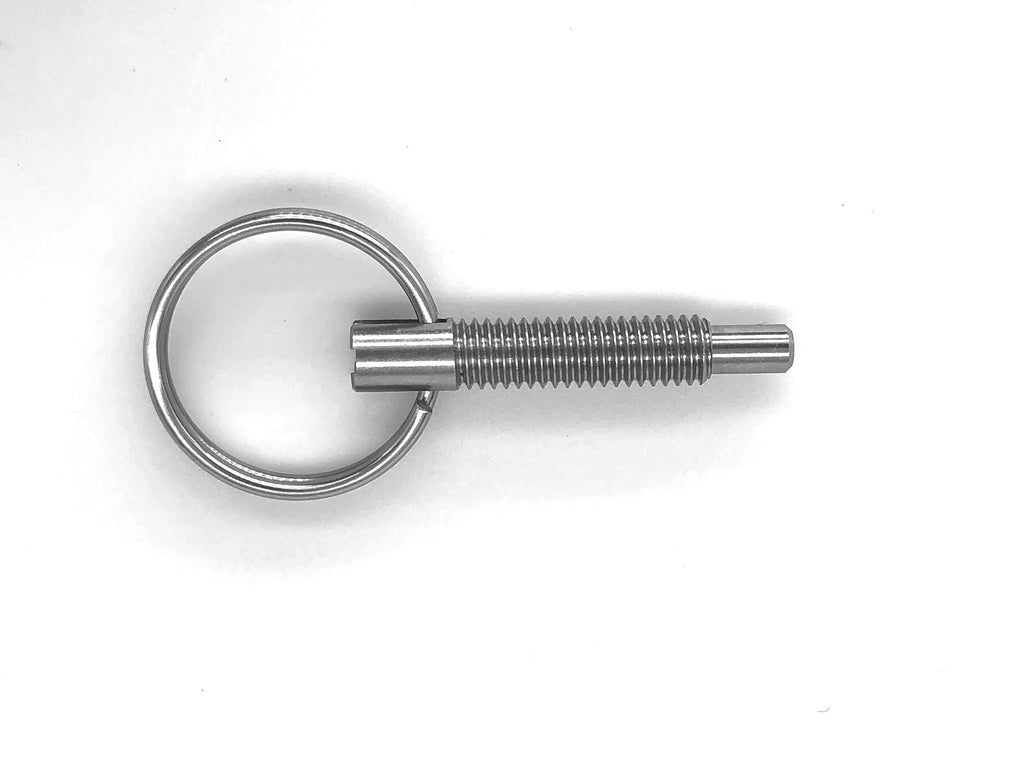

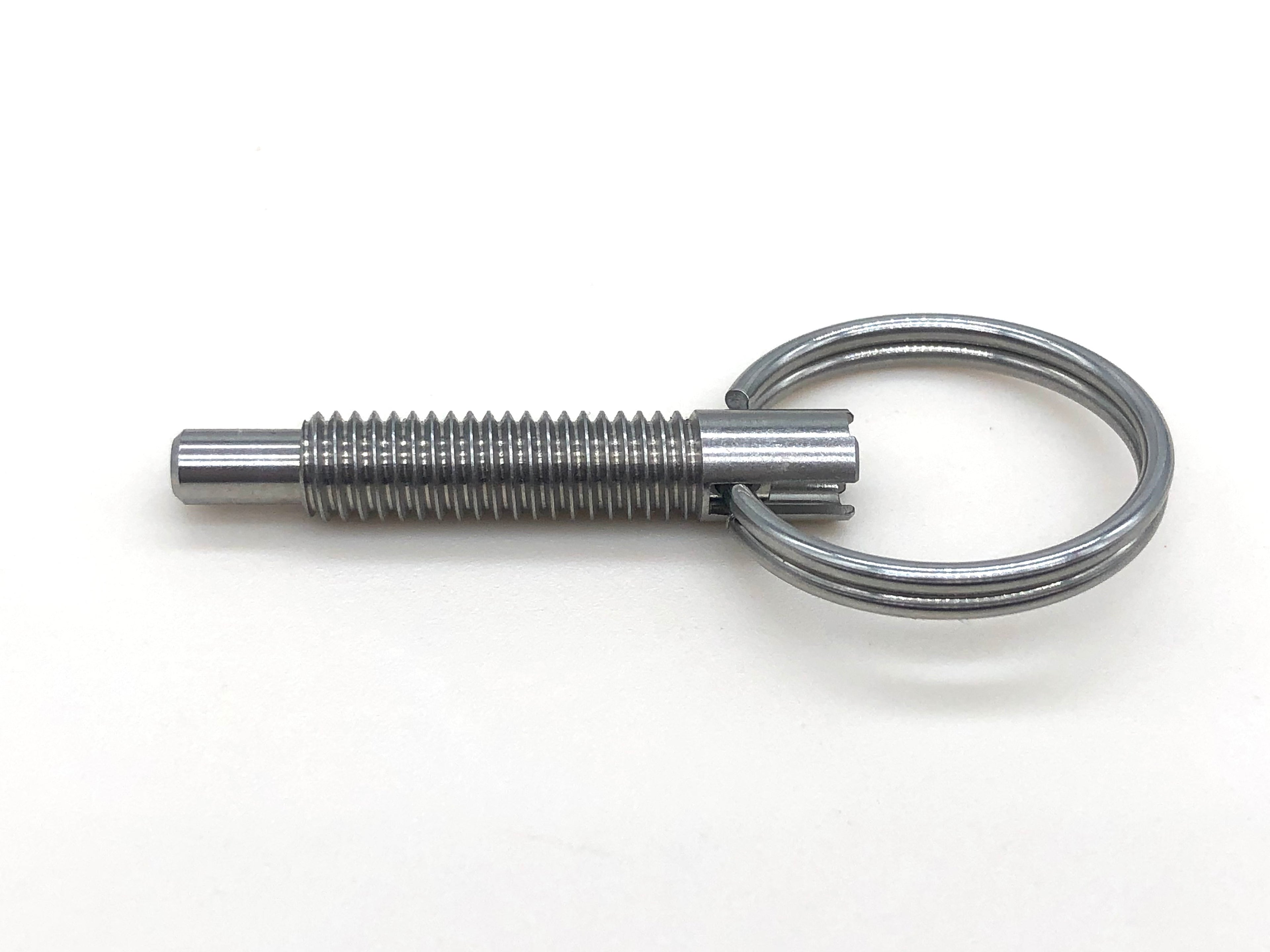

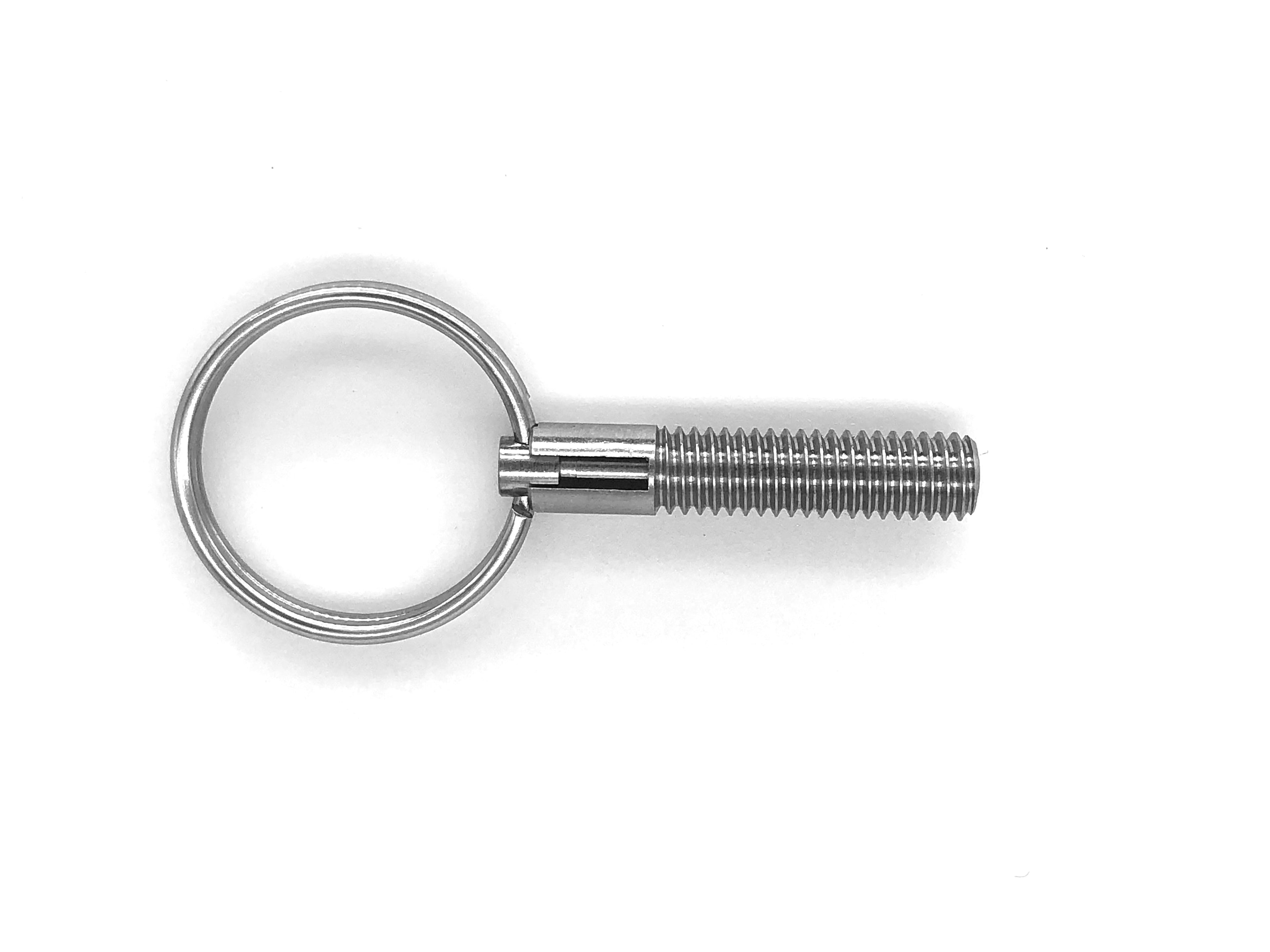

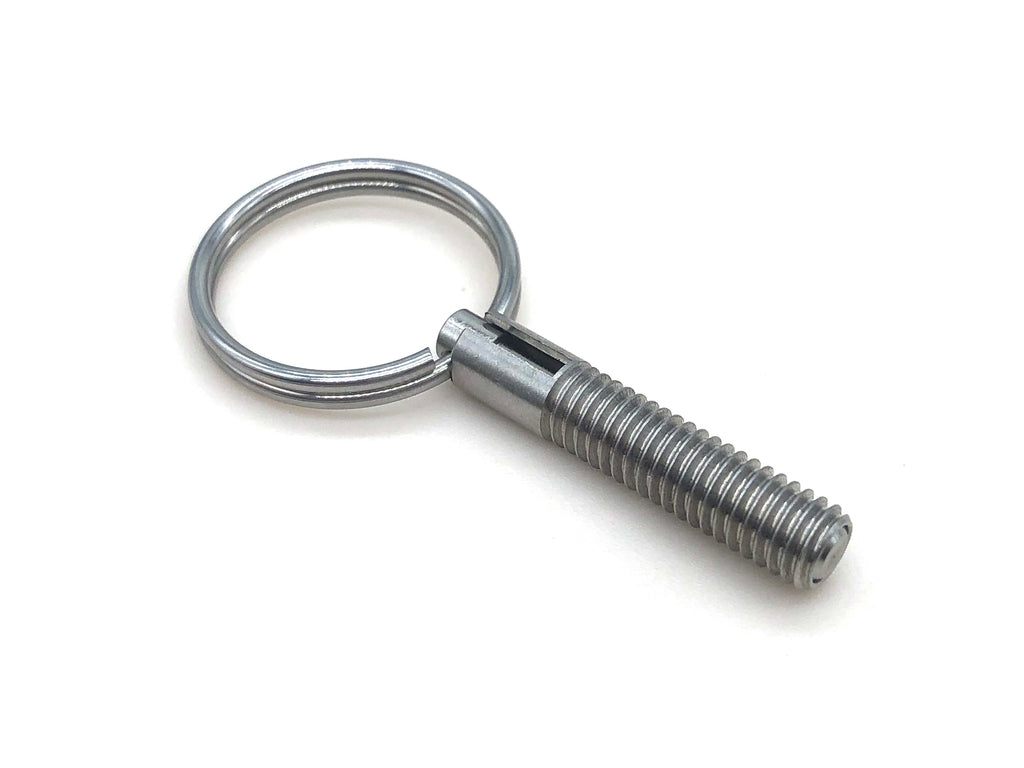

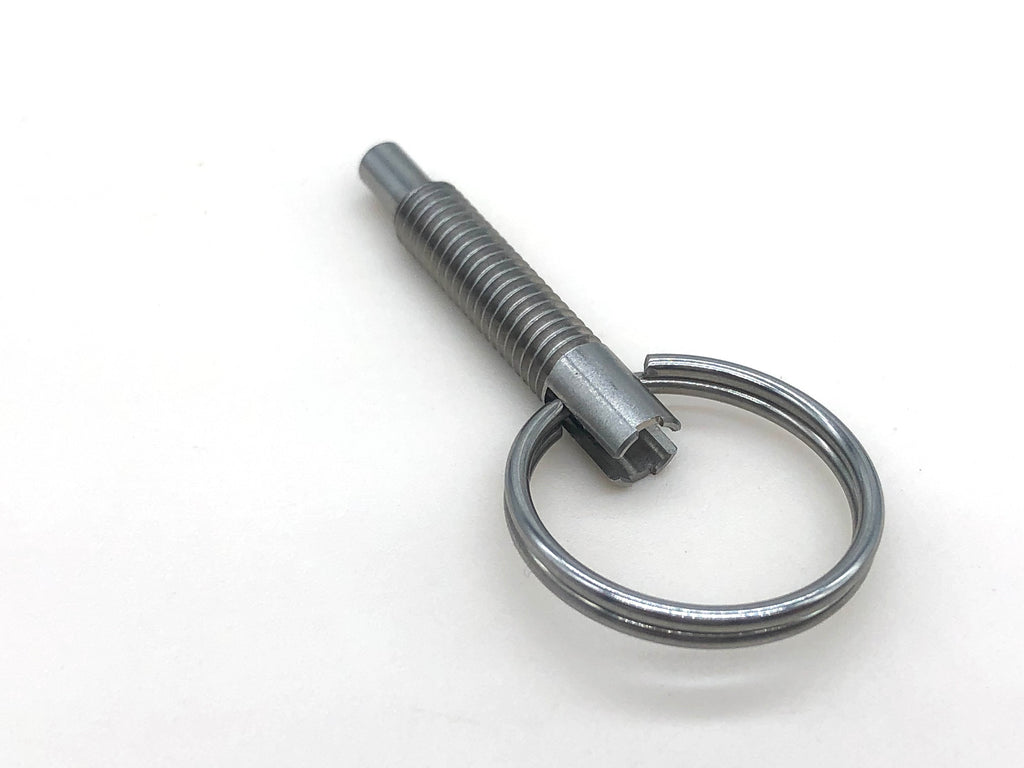

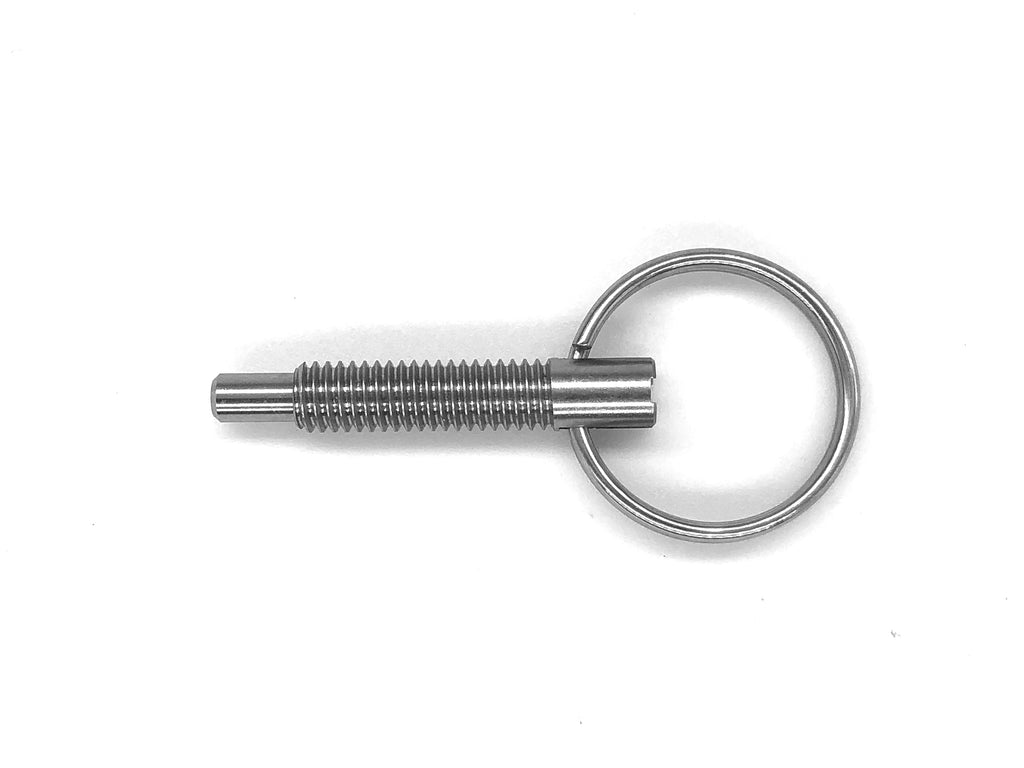

Product Introduction: Ring Pull Indexing Pin

This product is a Ring Pull Indexing Pin , a precision mechanical component engineered for accurate positioning, indexing, and quick locking in diverse industrial scenarios.

Key Features & Construction

Material: Crafted from high-grade stainless steel or carbon steel, it offers exceptional corrosion resistance and mechanical strength, ensuring durability even in harsh industrial environments.
Structure: It comprises a pull ring, a threaded pin body, and a retractable plunger. The pull ring enables effortless manual operation to extend or retract the plunger, while the threaded design guarantees secure installation into compatible threaded holes of equipment.

Applications & Uses

This indexing pin is widely utilized in:

Automated Production Lines: For precise positioning of workpiece pallets, assembly stations (e.g., automotive parts assembly lines).
CNC Machinery: Indexing of tool turrets, rotating worktables, and machining centers to maintain strict machining accuracy.
Tooling & Molds: Facilitating multi-station switching or precise mold positioning, boosting production efficiency.
Precision Testing Equipment: Indexing of sample stages and positioning of inspection fixtures to ensure the reliability of test data.

Competitive Advantages

Ease of Operation: The pull ring design allows for fast, intuitive operation, reducing downtime during positioning adjustments.
Reliability: Its robust build and corrosion-resistant material ensure long-term, stable performance in heavy-duty industrial settings.
Precision: Enables micrometer-level positioning accuracy, critical for applications requiring strict dimensional control.

Whether you’re optimizing an automated workflow, enhancing CNC machining precision, or refining tooling systems, this Ring Pull Indexing Pin delivers the reliability and precision your operations demand.
